Sunstone 30"Kamado Base Cabinet

Unlock the ultimate in outdoor cooking flexibility with the 30" Sunstone Combo Kamado Hybrid Power Burner Base Cabinet. Designed to adapt to your unique cooking style, this single cabinet offers multiple configuration options—whether you’re setting up a Kamado, adding extra prep space, or installing a powerful Sunstone burner.

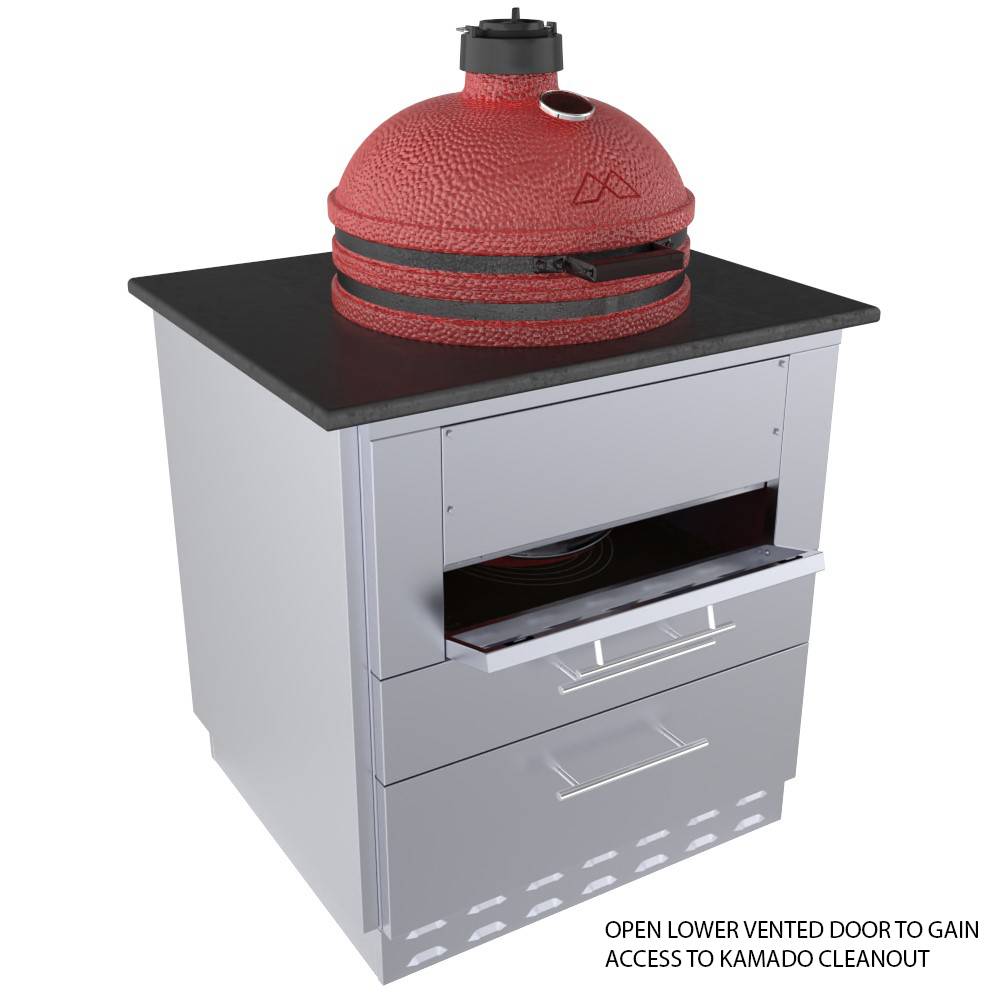

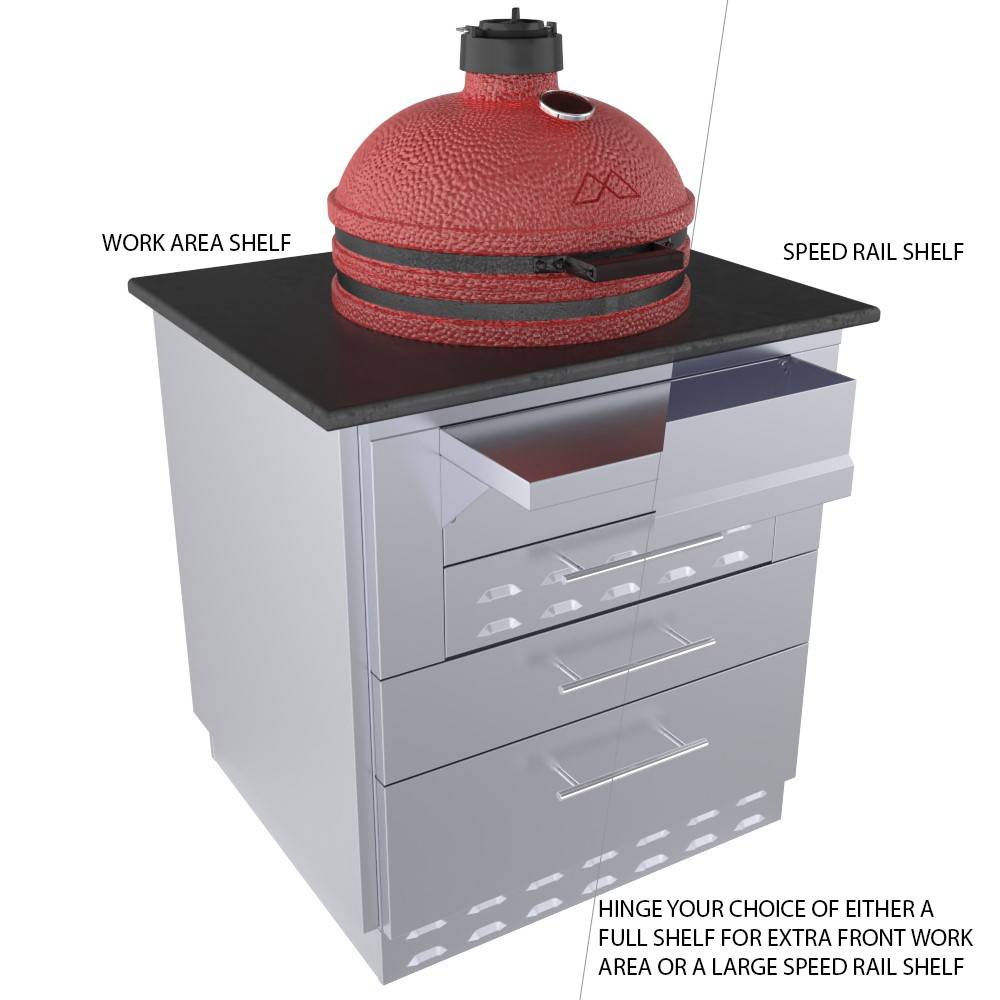

The included trim-kit face plate makes it easy to fit most Kamado grills, with direct access to the lower ashtray through a vented door panel. For added versatility, swap in optional front panel mounts such as a floating shelf for additional workspace or a speed rail shelf for convenient front-load storage.

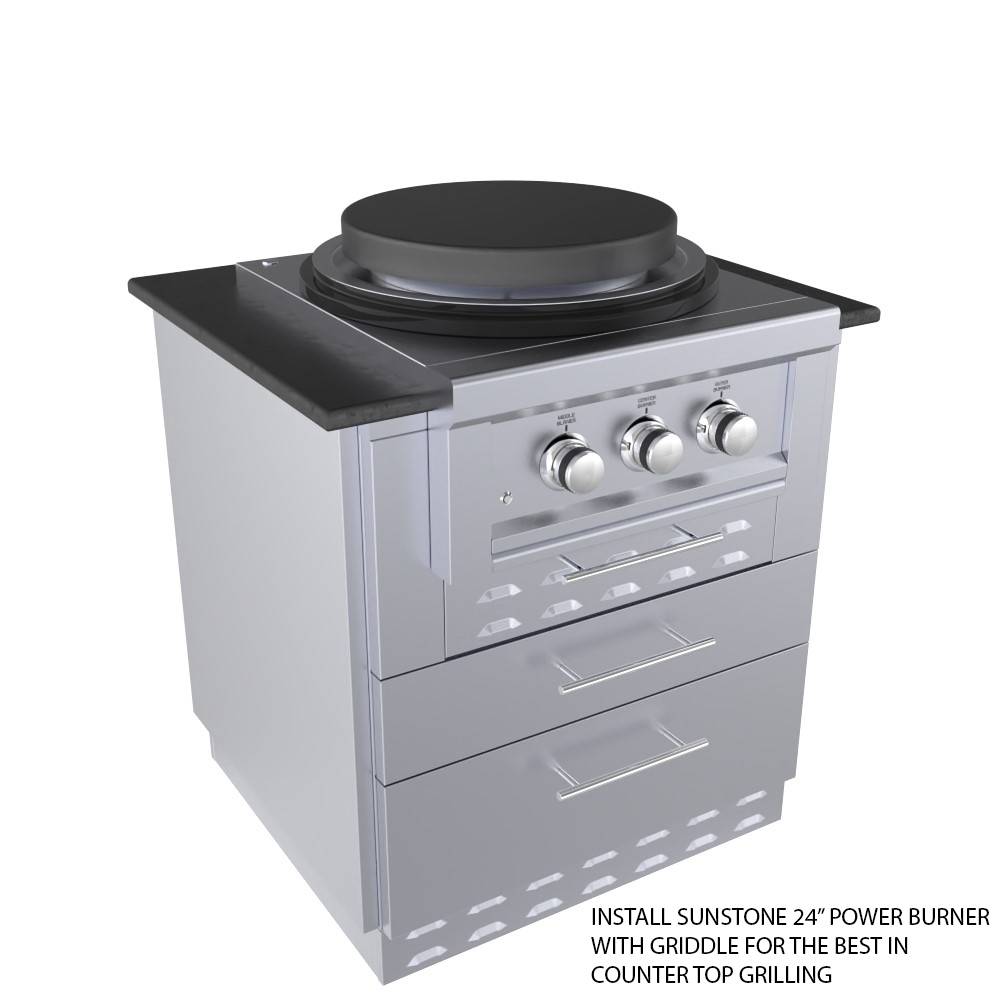

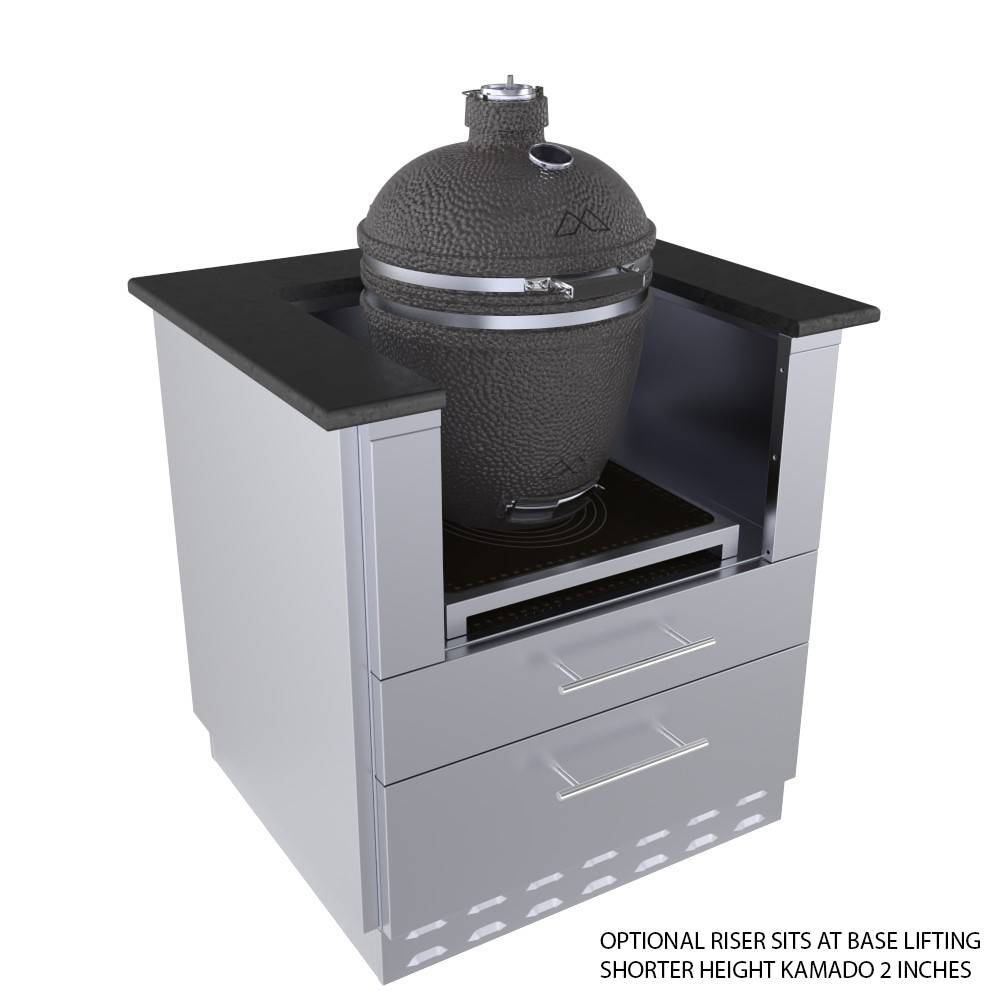

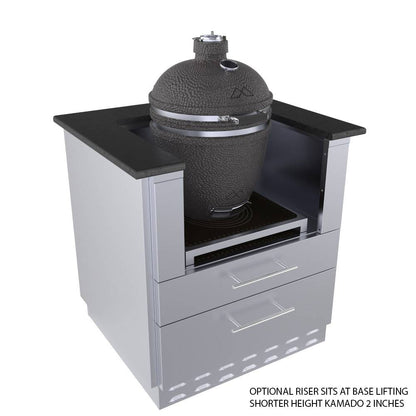

Remove the center top panel to install the Sunstone Power Cirque Burner, or adjust for larger Kamados by removing the vent door panel. For shorter Kamado models, simply use the optional 2" riser platform to achieve the perfect fit. An included measurement guide mat ensures your Kamado is perfectly centered while also protecting the finish below.

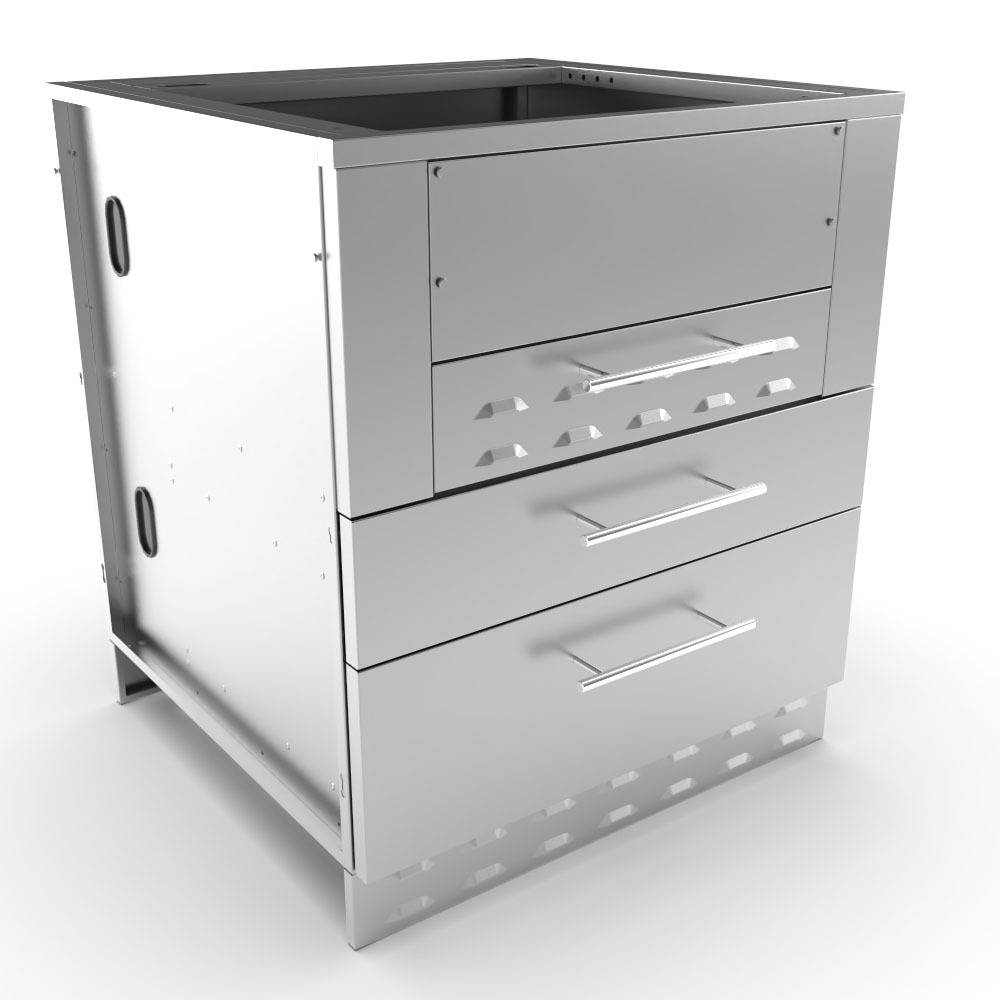

Crafted from durable 304 stainless steel and finished with solid rod handles, the cabinet arrives fully assembled—only requiring installation of the peg legs, kick-plates, and handles. The adaptable trim-kit system ensures compatibility with most Kamado grills and burners on the market. Please refer to the cabinet specification sheet for detailed cut-out dimensions and proper trim-kit selection.

• Lifetime Structure Warranty – Long-term durability backed by Sunstone’s industry-leading guarantee.
• Premium 304 Stainless Steel Construction – Built to withstand the elements with a sleek, professional finish.
• Solid 304 Stainless Steel Rod Handles – Heavy-duty, modern hardware designed for everyday use.
• Front Vented & Rear Solid Kick-Plates – Engineered for ventilation, stability, and a finished look.

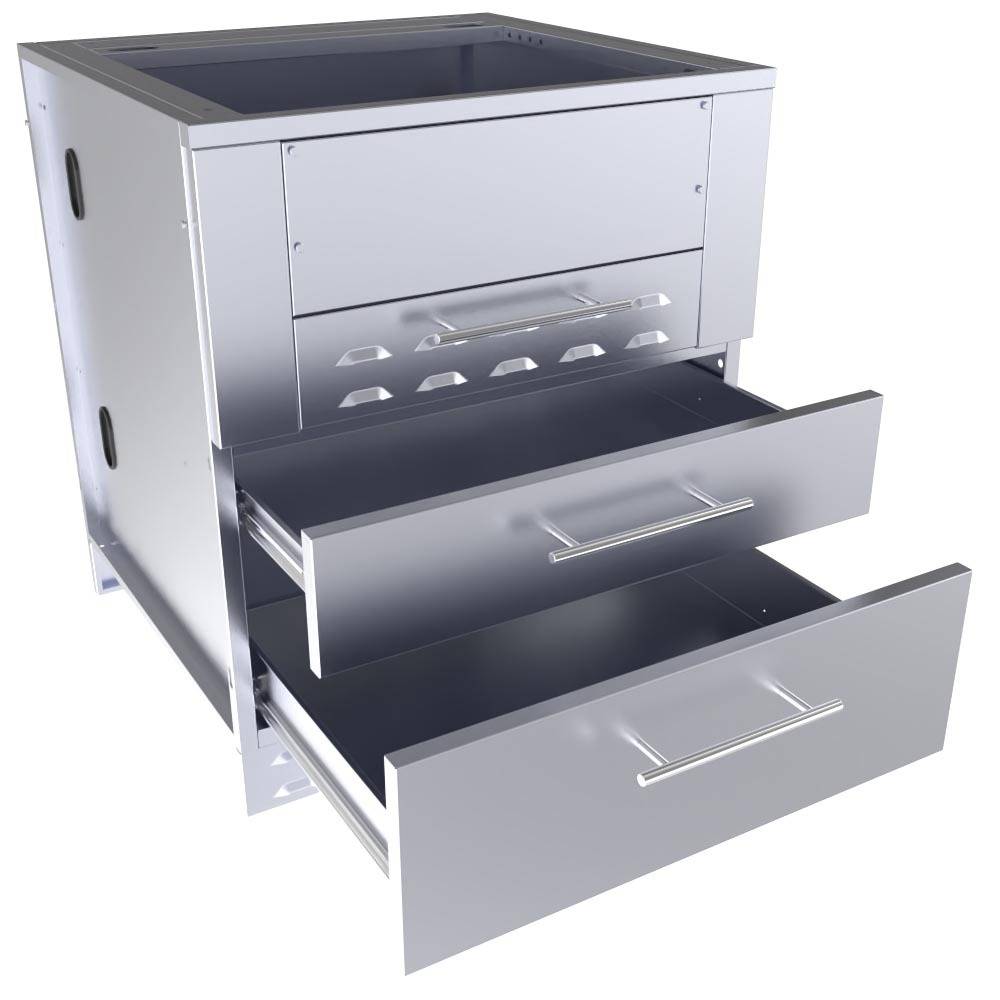

• Two Soft-Close Drawers – Smooth, quiet operation with ample storage for grilling essentials.
• Easy Pin-Lock Installation – Quick assembly with secure, seamless connections.
• Removable Counter Rail – Flexible design for multiple kitchen configurations.
• Covered Side Wall Access Ports – Clean and convenient access points for utility connections.
• Four Adjustable Peg Legs – Ensure a level fit on any patio surface.
• Optional Wheel Casters – Add mobility to convert your cabinet into a rolling cart.
• Replaceable Face Panel – Refresh your cabinet’s look without replacing the entire unit.
• Optional Floating Shelf – Expand prep space and functionality with a versatile add-on.
• COMBO Package includes:
• Combo PKG of  (1) SCC22PTD, (1) SCC22BPE, (2) SCC15PTD, (2)  SCC15BPE,(1) SCC16RARM, (1) SCC16LARM, (1)  SCCHGCTK4.75

SAC30KBDC TRIM-KIT:
Item Number: Center Panels Installed
Sleeve Cut-Out: 24-1/2"W x 23-1/2"D x 14-1/2"H w/3/4" Counter
Product Option: Blaze® 20-Inch Cast Kamado - BLZ-20 Joe Classic® II 18-Inch Kamado - KJ23NRHC Caliber ® Pro Stainless-Steel Kamado - CTP22-SS

Item Number: Center Panels Removed
Sleeve Cut-Out: 22-3/4"W front opening with internal 24-1/4"W x 23-1/2"D x 14-1/2"H w/3/4" Counter
Product Option: Blaze® 20-Inch Cast Kamado - BLZ-20 Big Joe® II 24-Inch Kamado - BJ24NRHC Pro Joe® 24-Inch Ceramic Kamado - PJ24NRHC
Joe Classic® II 18-Inch Kamado - KJ23NRHC Caliber® Pro Stainless-Steel Kamado - CTP22-SS

Item Number: Center Top Panel Removed (Counter-Top Installation)
Sleeve Cut-Out: 22-3/4" Width x 8-1/2" Height x Max 24-1/2" Depth Add 1 Inch Height Counter to provide a Cut-Out height of 9-1/2"
Product Option: SUN24PCB® - Sunstone 24" Power Cirque Coyote® Power Burner - C1PBNG Twin Eagles® Power Burner - TEPB24HG-CN Alfresco® 24-Inch Versa Power - AXEVP-LP

Item Number: SCC30KB-RISER (2” Riser Support)
Sleeve Cut-Out: 11-3/4"H or 12-1/2" H (3/4" Counter included in Height) w/Base at 10"W x 2"H x 21"D
Product Option: Primo® Oval Large 300 Kamado – 775 Primo® Oval Junior 200 Kamado – 774 Primo® Large Round Ceramic Kamado – 771 Grill Dome Infinity® Kamado - GDS-BK

Item Number: SCC30KB-WLSHELF (Floating Shelf)
Sleeve Cut-Out: Product Size - 22-1/2"W x 1-3/8"H x 8"D

Item Number: SCC30KB-SPRAIL (Speed Rail)
Sleeve Cut-Out: Product Size - 22-1/2"W x 5"H x 4-1/2"D

Product Option Listed:

• 30"W x 28-1/4"D (w/Doors) x 34-1/4"H  (w/Legs) or 30-1/8"H (no Legs)
